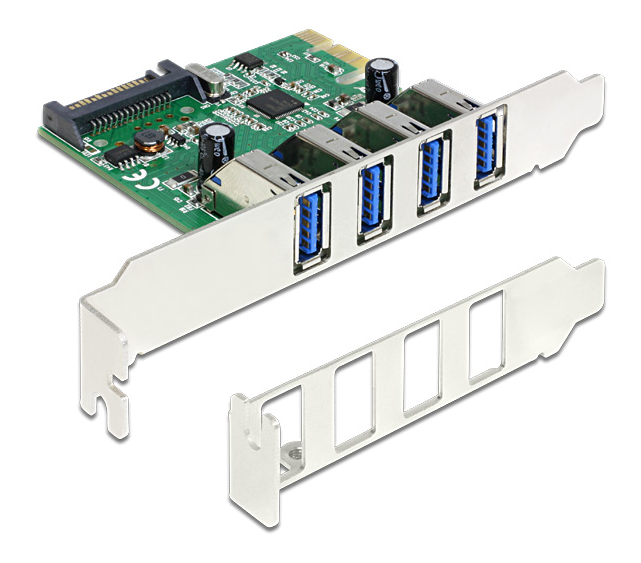

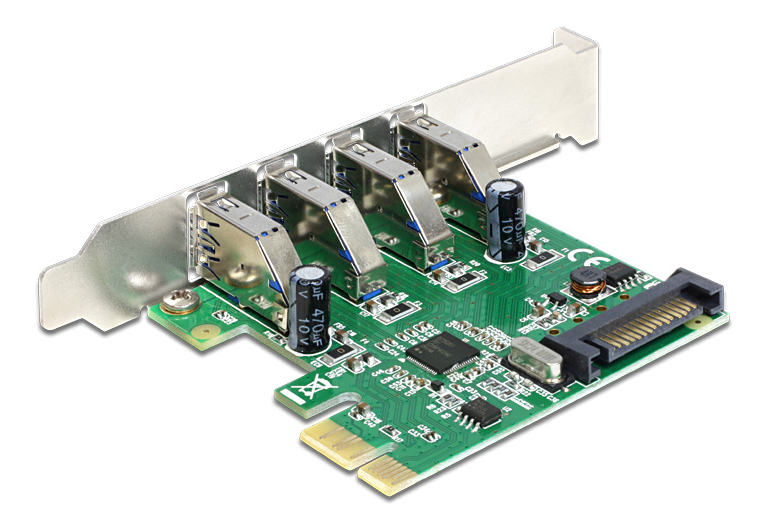

DeLOCK PCI Express x1 Card > 4 x external USB 3.0

The PCI Express card by Delock expands a PC by four external USB 5 Gbps ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB ports, it is possible to install it into a low profile slot.

Technical details
• Connectors:
external:
4 x USB 5 Gbps Type-A female
internal:
1 x SATA power connector
1 x PCI Express x1, V2.0
• Chipset: Renesas
• Data transfer rate up to 5 Gbps


System requirements
• Linux Kernel 3.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
• Power supply with a free SATA power connector

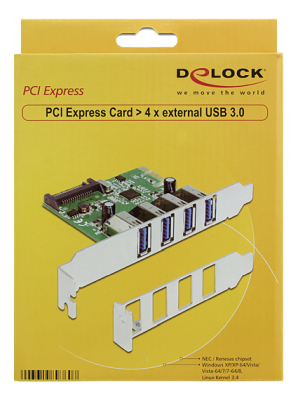

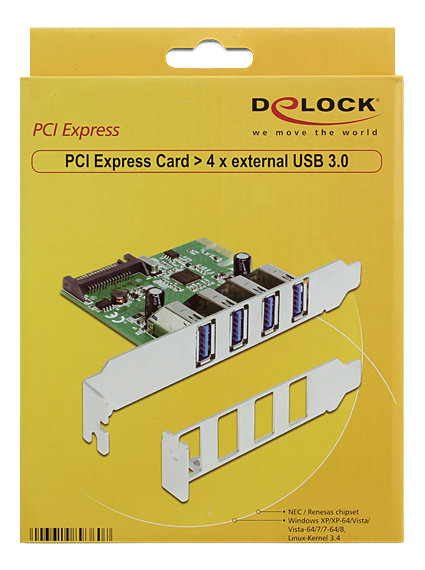

Package content
• PCI Express card USB 5 Gbps
• Low profile bracket
• Driver CD
• User manual
