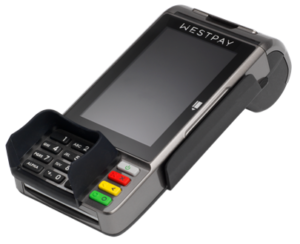

Westpay Carbon C-100 mobil terminal. Den stora 4" färgskärmen i kombination med den blixtsnabba skrivaren ger en helt ny användarupplevelse.

Terminalen uppfyller de senaste PCI-säkerhetskraven och är redo för morgondagens kontaktlösa betalningsmedel.

Levereras inkl. laddställ.

Physical characteristics
Dimensions: 181 L x 82,6 B x 63,5 H mm
Weight: 426g (with battery, without packaging)
Display: 4” color TFT with 400×800 resolution
Touch: Capacitive
Keypad: Backlit keypad with 10 numeric keys and 6 function buttons.
Notification Audio: Mono speaker
Battery: Li-Ion battery

Performance
CPU: 1,2 GHz Cortex A53 Quad Core Processor
Memory: 8GB eMMC internal storage, 1gb DDR3 SDRAM
OS: Android 6.x

Card readers
Magnetic stripe: ISO 7811 compliant with 3 tracks (1, 2, 3)
Smart card: ISO7816-1/2/3(1.8V, 3V, 5V). Synchronous and asynchronous card protocol. EMV approved
Contactless: ISO18092 NFC, ISO14443 type A/B, MiFare
Supports the following* contactless applications: MasterCard PayPass, M/Chip, PayPass MagStripe, Visa payWave MSD, VISA payWave, qVSDC, Discovery Zip, American Express ExpressPay
SAM/SIM: 2x SAM, 1x SIM

Printer
Speed: 15-20 lines per second
Paper: 57mm paper width, 40mm paper roll diameter, 48mm printing width

Communication
Wi-Fi: 2,4 & 5Ghz
GSM: 3G, 4G
USB-C: 1x

User environment
Operating temp.: 0°C to 50°C
Storage temp.: -20°C to 60°C
Humidity: 5% to 95% (non-condensing)
Drop specification: 1.2m to concrete

* Full hardware Support. Sofware may require adjustments case to case.
