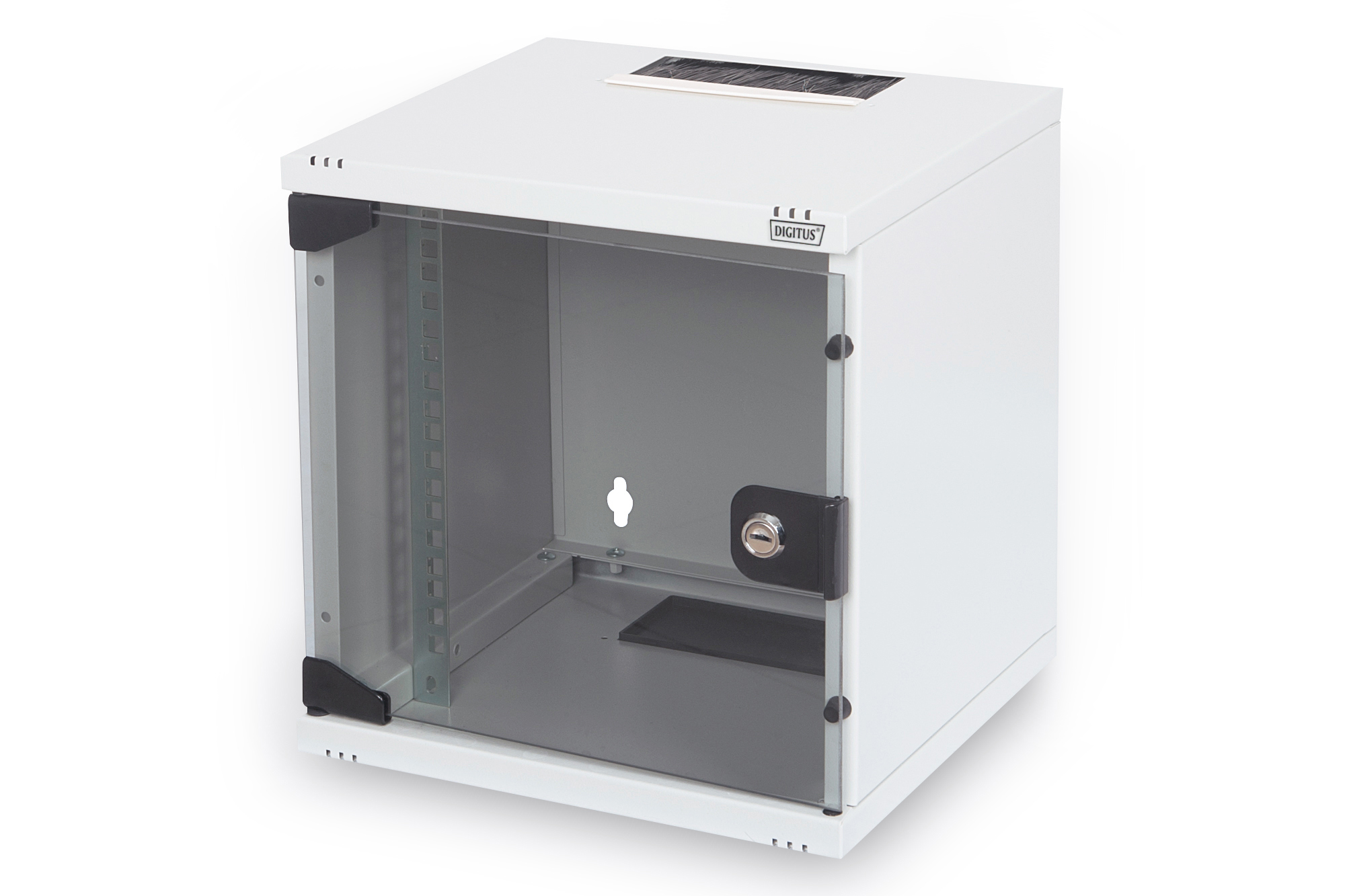

254 mm (10") 6U wall mounting cabinet 330x312x300 mm, color grey (RAL 7035)

The DIGITUS® Professional Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

Very compact enclosure
Easy to assemble in your office building
Provides a neat cable management
The 254 mm (10”) wall mounting cabinets are made of a robust steel sheet construction. Cable entry openings on top and base side provide the best possibilities for cable management in a compact area. With its overall compact design this enclosure is ideal for current IT and telecommunication applications, especially in narrow areas or private households.

Technical Details
Safety class rating IP20
Lockable safety-glass door
200° door opening angle
1-point-locking-mechanism on the front door
254 mm (10") profile rails mounted on the front side inside of the cabinet, galvanized
254 mm (10") profile rails are adjustable in depth
1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
Cable entry with brush strip on the top and with plastic cover on the base
Ventilation slots for active and passive ventilation and exhausting
Equipment mounting depth max.: 260 mm
Colour: Grey
Width: 312
Model: With permanent frame
Height: 330
Depth: 300
RAL-number: 7035
Number of doors: 1
Type of ventilation: Passive
Material: Steel
Number of height units: 6
With socket: no
Degree of protection (IP): IP20
Type of surface: With powder coating
Mounting level: Front side
Type of profile rail: L-shaped
With roof plate: yes
With earthing: no
With front door: yes
With backside door: no
With sidewall: yes
Demountable: yes
Modular spacing: 254 mm (10 inch)
