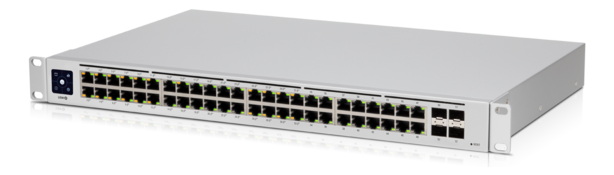

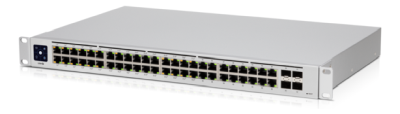

Ubiquiti Networks UniFi USW-48-POE Gen2, 48-port Gigabit med 32xPoE+, 4xSFP, 195W

Ubiquiti Networks USW-48-POE

Layer 2, PoE switch with (48) GbE RJ45 ports, including (32) 802.3at PoE+ ports, and (4) 1G SFP ports.

The Switch 48 PoE (USW 48 PoE) is a fully managed switch with (48) GbE RJ45 ports, including (32) GbE, 802.3at PoE+ ports, and (4) 1G SFP ports. The versatile USW 48 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:
• (1) 1.3" LCM color touchscreen with AR switch management
• (32) GbE, 802.3at PoE+ RJ45 ports
• (16) GbE RJ45 ports
• (4) 1G SFP ports
• 195W total PoE supply
• Fanless, silent cooling

Managed with the UniFi Network application: Version 5.12.32 and later

52 port
Art.nr: 70626
Hyvelgatan
Beställningsvara (ber. 2026-04-21)
Slite Utveckling
Beställningsvara (ber. 2026-04-21)

Fjärrlager
Fjärrlager
⁨{$antal}⁩ ⁨{$enhet}⁩
6 072 kr
116,77 kr / port

Anslutningar
Antal RJ-4548
Typ av Ethernet-portarGigabit Ethernet (10/100/1000)
Antal SFP-modulplatser4
Power over Ethernet (PoE)
Power over Ethernet (PoE)-effekt per port32 W
Strömförsörjning via Ethernet (PoE) stödJa
Antal Power over Ethernet plus (PoE +)-portar32
Total Power over Ethernet (PoE)-budget195 W
Data transmission
Jumbo Frames stödJa
Switch kapacitet104 Gbit/s
Hastighet vid vidarebefordran77,38 Mpps
Genomströmning52 Gbit/s
Management features
Switch lagerL2
Switch typhanterad
Design
Produktens färgRostfritt stål
RackmonteringJa
Formfaktor1U
Nätverk
10G stödNej
Auto MDI / MDI-XJa
STP (Spanning Tree Protocol)Ja
VLAN-stödJa
Prestanda
FläktlösJa
Miljökrav
Intervall för relativ operativ luftfuktighet10 - 90%
Temperatur vid drift-5 - 40 ° C
Strömtillförsel
Strömförbrukning (max)45 W
Strömförsörjning ingårJa
Vikt & dimension
Höjd43,7 mm
Bredd442,4 mm
Djup285 mm
Vikt4,52 kg
Fabrikat
TillverkareUbiquiti Networks
SKUUSW-48-POE
