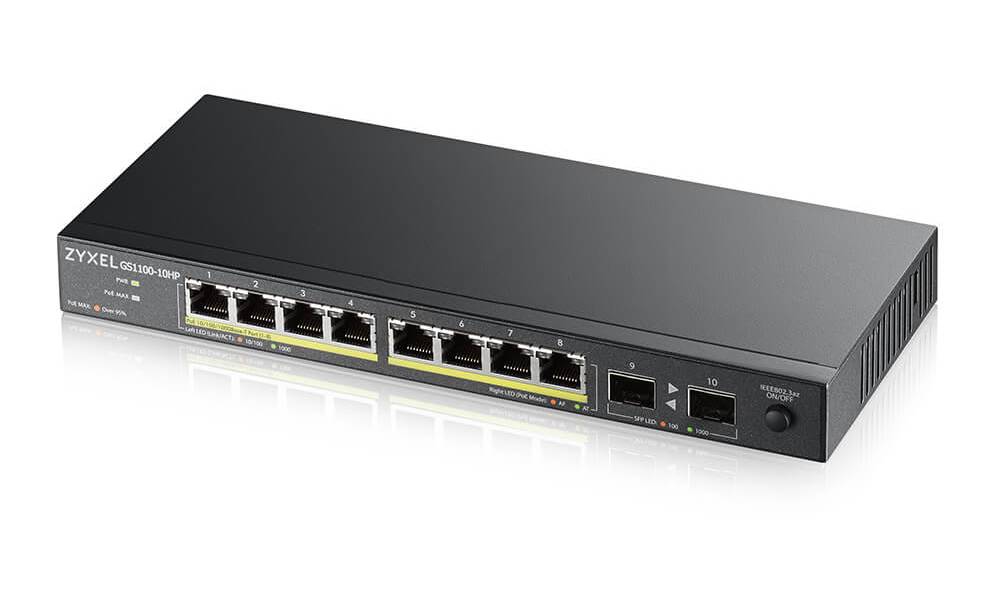

ZyXEL GS1100-10HPv2, 8-port Gigabit PoE+ 130W, 2xSFP, fläktlös
ZyXEL GS1100-10HP-EU0102F
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Support PoE+
The GS1100-10HP supports PoE+ (IEEE 802.3at) which provides a maximum of 30W per port, delivering fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Support PoE+
The GS1100-10HP supports PoE+ (IEEE 802.3at) which provides a maximum of 30W per port, delivering fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.
10 port
Art.nr: 71913
Hyvelgatan
{$antal} {$enhet} i butikslager, hyllplats {$hyllplats}
Slite Utveckling
Beställningsvara (ber. 2025-10-29)
Fjärrlager
Fjärrlager
{$antal} {$enhet}
1 875 kr
187,50 kr / port
Produktspecifikation

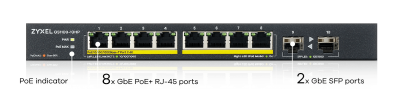

Anslutningar
| Antal RJ-45 | 8 |
| Typ av Ethernet-portar | Gigabit Ethernet (10/100/1000) |
| Antal installerade SFP-moduler | 2 |
Power over Ethernet (PoE)
| Strömförsörjning via Ethernet (PoE) stöd | Ja |
| Power over Ethernet (PoE)-portar kvantitet | 8 |
| Total Power over Ethernet (PoE)-budget | 130 W |
Data transmission
| Adresstabellstorlek | 8000 poster |
| Jumbo Frames stöd | Ja |
| Switch kapacitet | 20 Gbit/s |
| Hastighet vid vidarebefordran | 14,88 Mpps |
| Paketbuffertminne | 0,256 MB |
| Jumboramar | 9000 |
Management features
| Switch typ | Ohanterad |
Design
| Produktens färg | Svart |
Nätverk
| 10G stöd | Nej |
| Datahastighet för Ethernet-LAN | 100,1000 Mbit/s |
| Auto MDI / MDI-X | Ja |
Miljökrav
| Intervall för relativ operativ luftfuktighet | 10 - 90% |
| Temperatur vid drift | 0 - 50 ° C |
| Temperaturintervall (förvaring) | -40 - 70 ° C |
Strömtillförsel
| Strömförbrukning (max) | 156,1 W |
Vikt & dimension
| Höjd | 27 mm |
| Bredd | 250 mm |
| Djup | 104 mm |
| Vikt | 730 g |
Fabrikat
| Tillverkare | ZyXEL |
| SKU | GS1100-10HP-EU0102F |
| Produktlänk | https://www.zyxel.com/global/en/products/switch/8-16-24-port-gbe-unmanaged-switch-gs1100-series |
