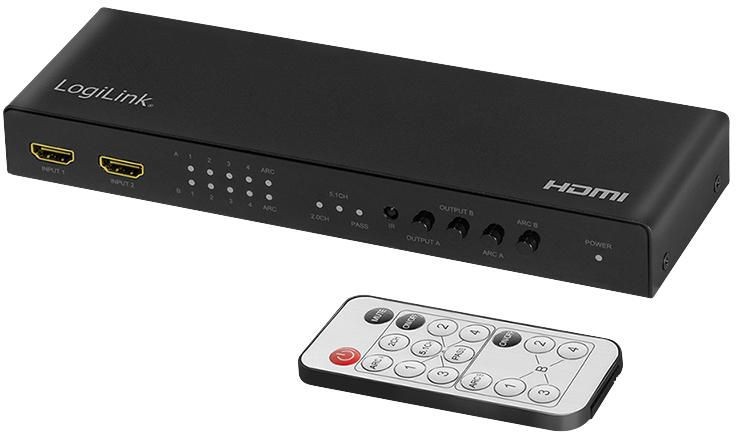

This high performance 4K HDMI Matrix Switch with IR remote can switch any of four HDMI sources to two HDMI displays; resolution up to 4K@60 Hz and is HDCP 2.2 compliant. Features 4K to 1080p downscale function, ARC and Audio Extraction.
Features:
» Connects four HDMI sources to two HDMI displays at the same time
» Resolution up to UHD 4K@60 Hz (YUV 4:4:4) and Full 3D
» Bandwidth: 6 Gbps/600 MHz per Channel (18 Gbps total)
» Supports HDCP 2.2
» Supports DDC, HDR, CEC and Downscale function
» Supports 12bit per channel (36bit all channels) deep color
» Supports audio output simultaneously: Stereo, Toslink and Coaxial
» Audio channels are selectable via remote control
» Both output ports supports Audio Return Channel (ARC) and audio extractor function
» Supports uncompressed audio such as LPCM
» Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby
TrueHD)
