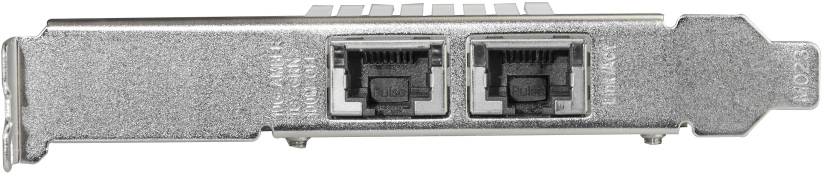

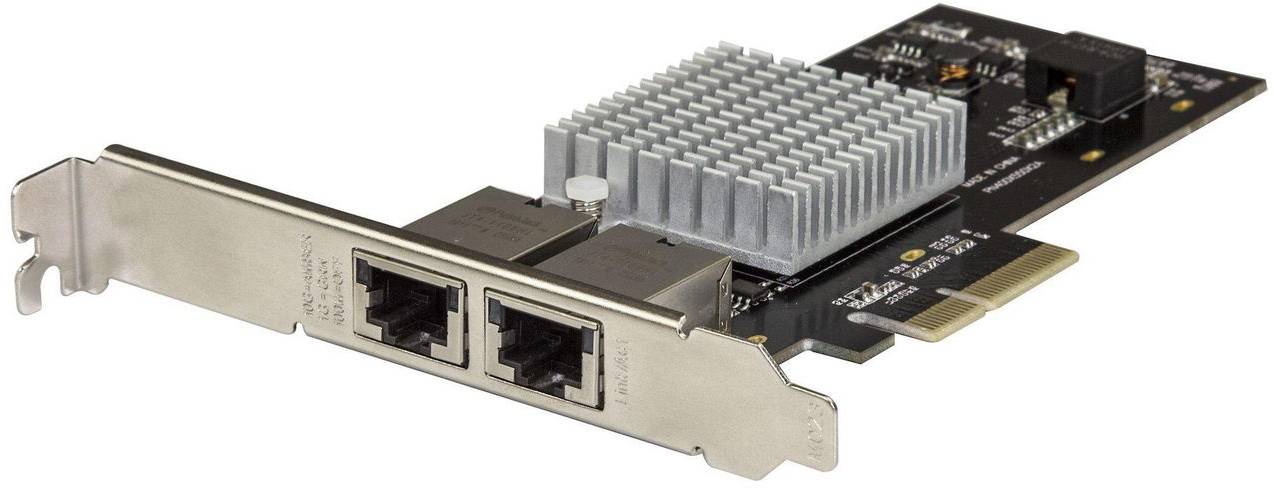

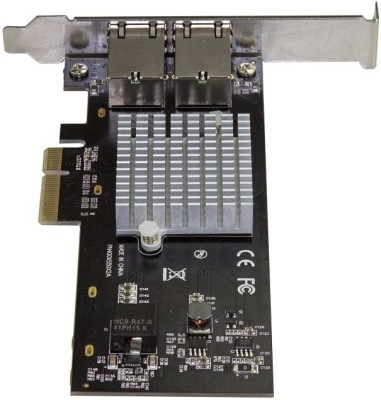

Startech Dual Port 10G PCIe Network Adapter Card, Intel X550AT, PCIe 3.0 x4, 2-Port
StarTech.com ST10GPEXNDPI
• DUAL PORT 10GbE NETWORK INTERFACE CARD: 10Gbps Dual port PCIe Network Adapter Card copper combines high data transfer rates to provide redundancy or independent connections to multiple networks
• TECH SPECS: 10 Gbps | 2x RJ45 Ports |Intel X550AT2 | 10GBASE-T & NBASE-T | Multi-Gigabit 1 / 2.5 / 5 / 10 Gbps | PCI Express 3.0 x4 | 9K Jumbo Frames | VLAN | VT-c | PXE | Full & low profile | 2Yr Warranty
• TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits validation tools to validate performance; compatible with major operating systems
• ADVANCED FEATURES: Workstation NIC Supports SAN (Storage Area Network) advanced features including iSCSI offload and Fibre Channel over Ethernet (FCoE)
• WIDE OS COMPATIBILITY: Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions)
• TECH SPECS: 10 Gbps | 2x RJ45 Ports |Intel X550AT2 | 10GBASE-T & NBASE-T | Multi-Gigabit 1 / 2.5 / 5 / 10 Gbps | PCI Express 3.0 x4 | 9K Jumbo Frames | VLAN | VT-c | PXE | Full & low profile | 2Yr Warranty
• TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits validation tools to validate performance; compatible with major operating systems
• ADVANCED FEATURES: Workstation NIC Supports SAN (Storage Area Network) advanced features including iSCSI offload and Fibre Channel over Ethernet (FCoE)
• WIDE OS COMPATIBILITY: Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions)
Art.nr: 85789
Hyvelgatan
Beställningsvara (ber. 2025-10-22)
Slite Utveckling
Beställningsvara (ber. 2025-10-22)
Fjärrlager
Fjärrlager
{$antal} {$enhet}
5 290 kr
Produktspecifikation
Anslutningar
| Gränssnitt | Ethernet |
| Antal LAN (RJ-45) anslutningar | 2 |
| PCI-version | 3.0 |
| Värdgränssnitt | PCI Express |
Design
| Intern | Ja |
| Kretsar | Intel X550AT |
| Produktens färg | Svart |
Miljökrav
| Temperatur vid drift | 5 - 50 ° C |
| Temperaturintervall (förvaring) | -20 - 60 ° C |
Nätverk
| Datahastighet för Ethernet-LAN | 10,100,1000,2500,5000,10000 Mbit/s |
| Maximal dataöverföringshastighet | 10000 Mbit/s |
Vikt & dimension
| Bredd | 15 mm |
| Höjd | 132 mm |
| Djup | 228 mm |
| Vikt | 98 g |
Logistikdata
| Harmonized System (HS)-kod | 85176990 |
Fabrikat
| Tillverkare | StarTech.com |
| SKU | ST10GPEXNDPI |
| Produktlänk | https://www.startech.com/en-us/networking-io/st10gpexndpi |
Anslutningar
| Gränssnitt | Ethernet |
| Antal LAN (RJ-45) anslutningar | 2 |
| PCI-version | 3.0 |
| Värdgränssnitt | PCI Express |
Design
| Intern | Ja |
| Kretsar | Intel X550AT |
| Produktens färg | Svart |
Miljökrav
| Temperatur vid drift | 5 - 50 ° C |
| Temperaturintervall (förvaring) | -20 - 60 ° C |
Nätverk
| Datahastighet för Ethernet-LAN | 10,100,1000,2500,5000,10000 Mbit/s |
| Maximal dataöverföringshastighet | 10000 Mbit/s |
Vikt & dimension
| Bredd | 15 mm |
| Höjd | 132 mm |
| Djup | 228 mm |
| Vikt | 98 g |
Logistikdata
| Harmonized System (HS)-kod | 85176990 |
Fabrikat
| Tillverkare | StarTech.com |
| SKU | ST10GPEXNDPI |
| Produktlänk | https://www.startech.com/en-us/networking-io/st10gpexndpi |
