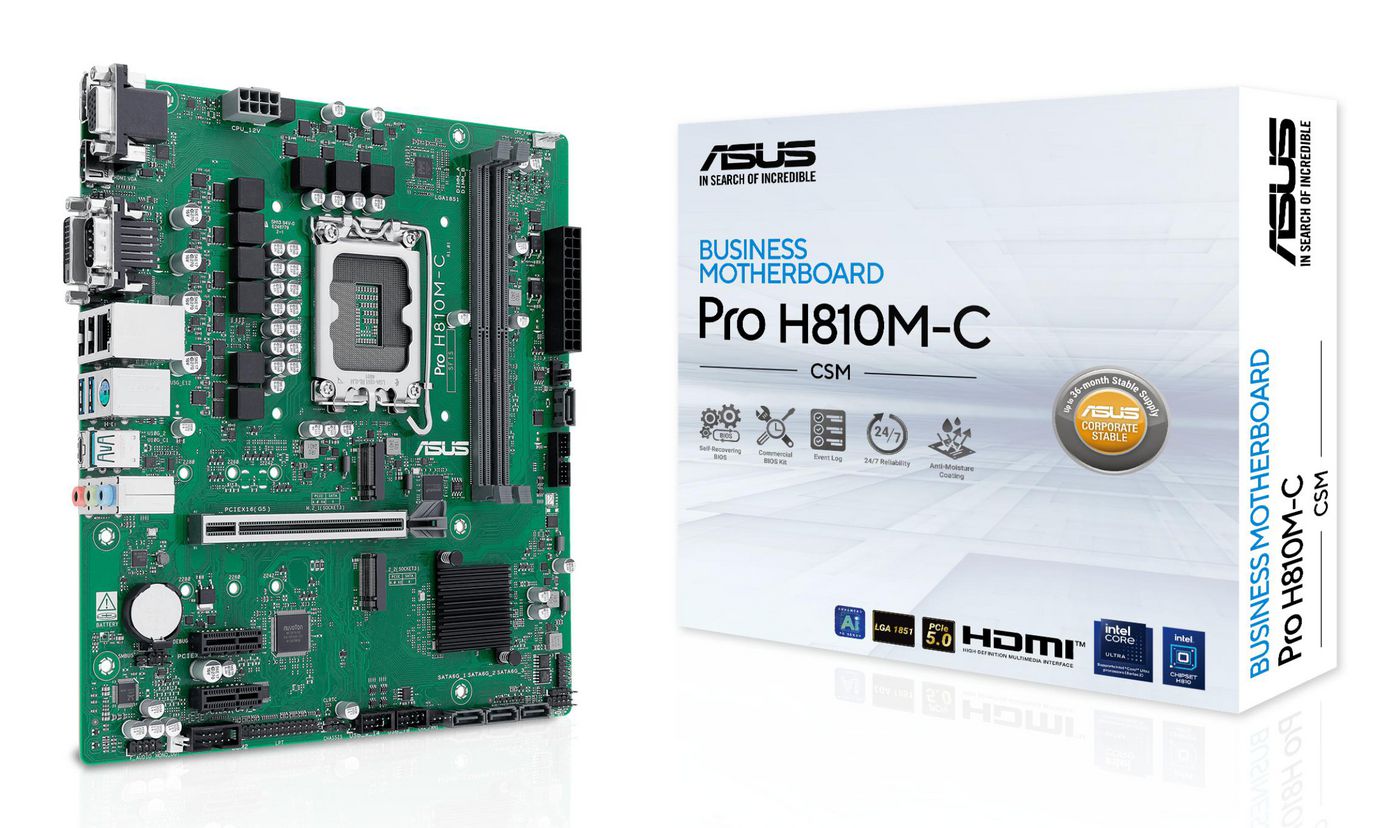

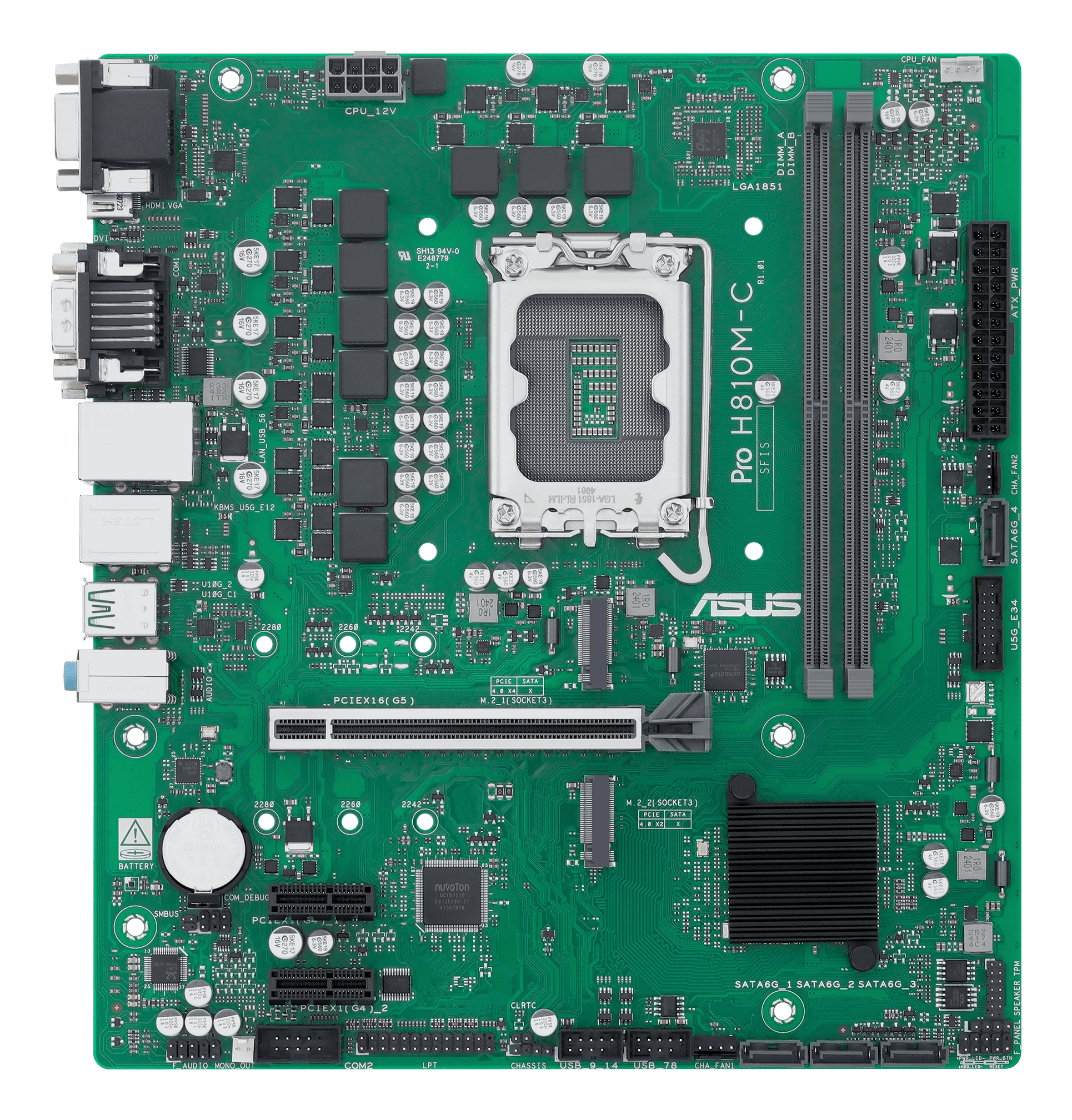

Asus PRO H810M-C-CSM, Intel LGA1851, MicroATX, 2xDDR5, PCI Express, 2xM.2 + SATA3, VGA/DVI/HDMI/DP, USB-C, GigaLAN, Aura Sync RGB

Name: Asus PRO H810M-C-CSM, Intel LGA1851, MicroATX, 2xDDR5, PCI Express, 2xM.2 + SATA3, VGA/DVI/HDMI/DP, USB-C, GigaLAN, Aura Sync RGB
Brand: ASUS
SKU: 89390

ASUS 90MB1KHP-M0EAYC

Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: Self-recovering BIOS to safeguard PCs
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
• Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast Connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear USB 10Gbps Type-A and Type-C®
• DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers

Art.nr: 89390

Butikslager

Hyvelgatan

Beställningsvara (ber. 2025-07-17)

Slite Utveckling

Beställningsvara (ber. 2025-07-17)

Fjärrlager

{$antal} {$enhet}

1 599 kr

Produktspecifikation

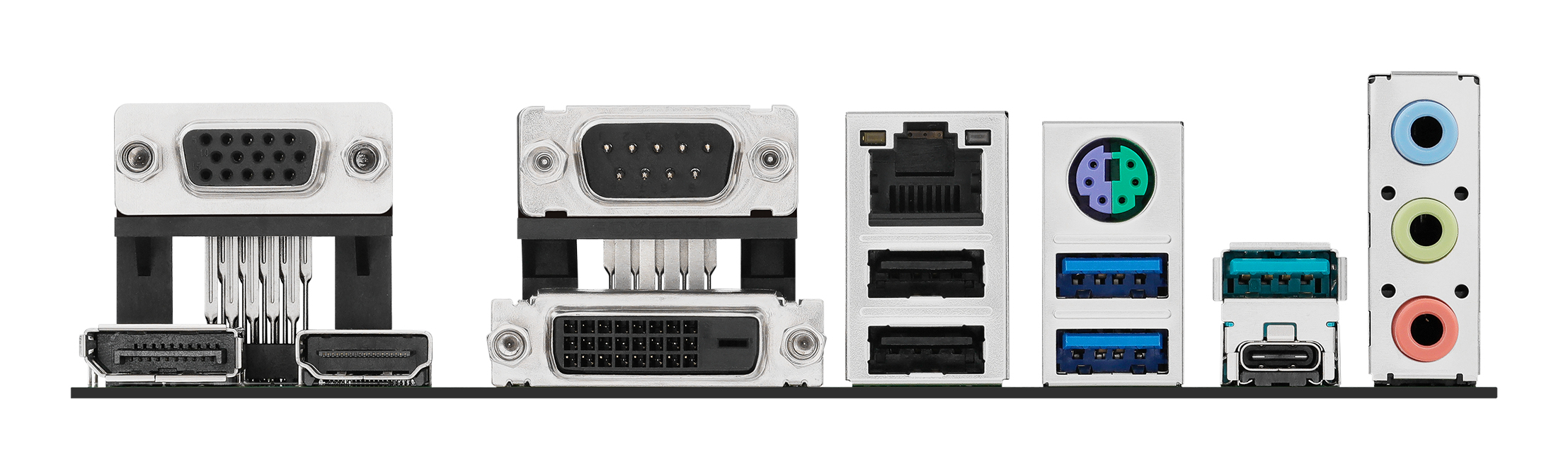

Anslutningsmöjligheter

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar	1
Antal Displayportar	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar	2
Antal USB 2.0 anslutningar	2
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar	1
Antal HDMI-portar	1
Antal LAN (RJ-45) anslutningar	1
Antal PS/2-portar	1
Antal VGA (D-Sub)	1
Antal DVI-D anslutningar	1
Antal COM portar	1

Egenskaper

Ljudutgångskanaler	7.1 kanaler
Moderkort formfaktor	micro ATX
Moderkortets chipset	Intel H810

Expansionsplatser

PCI Express x16 (Gen 5.x) platser	1
PCI Express x1 (Gen 4.x) platser	2
Antal M.2 (M)-platser	2
1:a M.2 högsta PCI Express-generation	4.0
1:a M.2 största nyckelstorlek	2280
2:a M.2 högsta PCI Express-generation	4.0
2:a M.2 största nyckelstorlek	2280

Grafiken

Stöd för parallellprocessteknik

Stöds inte

Internal I/O

Antal anslutningar för fläktar	2
USB 2.0 anslutning	2
USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar	1
Antal SATA III kontakter	4
Antalet COM-anslutningar	1
TPM-anslutning	Ja

Minne

Antal minnesplatser	2
Maximalt internminne	128 GB
Minnestyper som stöds	DDR5-SDRAM
Minneskanaler	Dubbla kanaler

Nätverk

Typ av ethernet-gränssnitt	Gigabit Ethernet
Wi-Fi	Nej

Processor

Processorsockel	LGA 1851 (Socket V1)
Processortillverkare	Intel

Lagringskontroll

Lagringsenhetsgränssnitt som stöds	M.2, SATA III
Antal lagringsenheter som stöds	6
Antalet hårddiskar som stöds	4

Vikt & dimension

Bredd	244 mm
Djup	222 mm

Fabrikat

Tillverkare	ASUS
SKU	90MB1KHP-M0EAYC
Produktlänk	https://www.asus.com/se/motherboards-components/motherboards/business/pro-h810m-c-csm/
